At PARK AVENUE DOORS we offer standard, ready to ship products as well as engineered products for custom applications. Standard doors are 1 3/4" in. (45 mm) thick and are available in 14, 16, 18, and 20 gauge galvannealed steel.

Our METAL DOORS are also available in stainless and G90 galvanized steel.

GENERAL SPECIFICATIONS

• Door faces are flush and free of any joints, welds or seams.


• Longitudinal door edges are interlocked with mechanical seam and reinforced with epoxy adhesive (seamless edge optional).


• Door edges are beveled 1/8" (3 mm) in 2" (50 mm).


• Door hinge reinforcements are prepared for standard weight 4 1/2" x 4 1/2"(114 mm x 114 mm) hinges, which can easily be converted to accommodate heavy weight hinges.

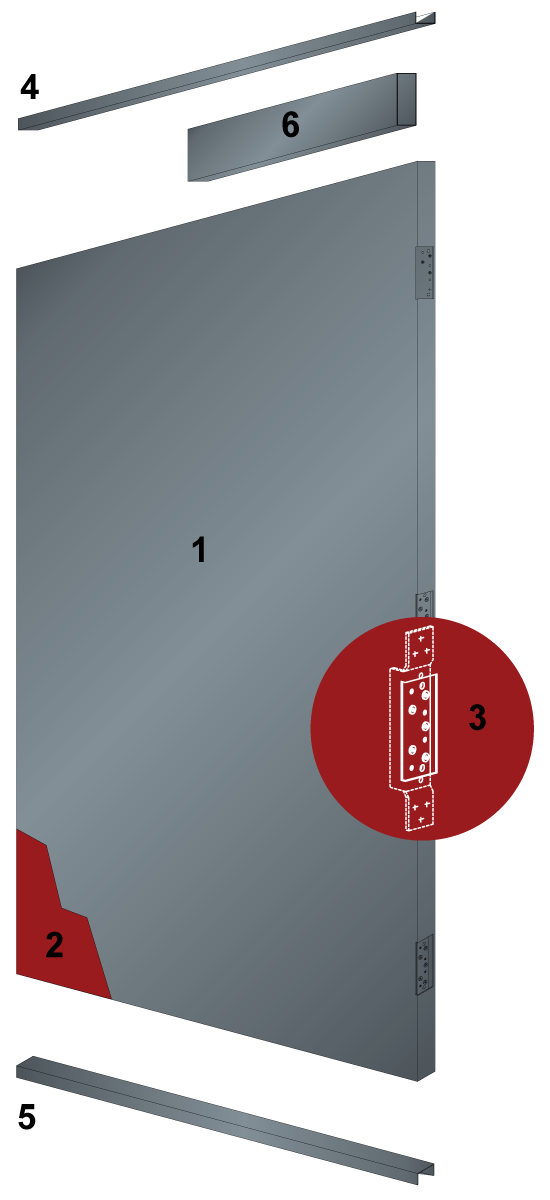

DOOR CONSTRUCTION

1. Door face sheet (galvannealed, stainless steel, G90 galvanized steel).


2. Core (Honeycomb, Polystyrene, Polyurethane).


3. 10 gauge high frequency dual purpose hinge reinforcement with return bend for added strength. Can easily be converted to accommodate heavy weight hinges.


4. 18 gauge inverted top channel projection welded to door skins and tack welded at each corner for extra rigidity.


5. 18 gauge door closer reinforcement box.


6. 18 gauge inverted bottom channel projection welded to door skins and tack welded at each corner for extra rigidity.

AVAILABLE CORES

HONEYCOMB	POLYSTYRENE	POLYURETANE

STANDARD LOCK PREPARATIONS

• 161 cylindrical lock assembly reinforcement with added barrel support projection welded to door edge, in accordance with ANSI A115.2 requirements.


• 86 edge mortise lock preparation reinforcement box with integrated lock support, in accordance with ANSI A115.1 requirements.


• Rim panic reinforcement box for surface mounted exit device application.

FIRE LABELS

PARK AVENUE DOORS fire labeled doors are approved by both Intertek Testing Services (ITS WarnockHersey) and Underwriters Laboratories (UL) Fire Labeling Programs. Doors can be fire labeled for up to 3 hours and must be installed in an equivalent fire labeled frame with approved fire listed hardware. For fire labeling restrictions and limitations refer to out Fire Labeling Guide for Hollow Metal Doors.

As a result of PADH's ongoing quest for improvement, technical specifications are subject to change without notice.

Lead-lined (x-ray) doors are also available for specialized applications

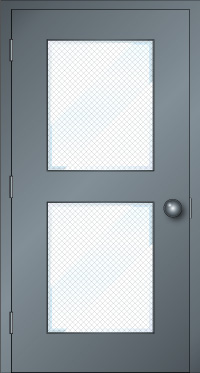

LITES

N2	N3	N4	N5	N6
N7	N8	N9	DUTCH DOOR	LOUVER
